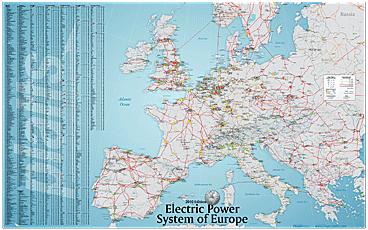

This map depicts key components of the electric power generation and transmission system in more than 40 European countries. Features include existing and planned power plants and electric transmission lines with a voltage of 110kV and greater. A table listing power plants by country, including valuable information such as generating station capacity and operational status, has been included for easy plant and operator identification. Topography, major cities and national capitals are also represented.
This edition displays nearly 400,000 kilometers of transmission, including more than 30 planned or under construction projects across Europe, in unprecedented detail. Also shown are over 1,200 generating stations and nearly 600 planned/under construction generation projects. This professional quality map is perfect for the boardroom, hallways or executive suite.
Key Features:
- Generating stations with an operating capacity of 100 MW and greater. Power plants are colored by primary fuel, sized by nameplate capacity, symbolized by operational status and labeled with name and operator. Operating, planned and under-construction stations are shown.
- Transmission lines with a voltage of 110 kV and greater, colored by voltage and labeled with ownership. Existing, planned and under construction lines are shown.
- Major cities, national capitals, topography
- Tables showing map feature abbreviations and key information
- Transmission projects, including those from these companies:
- Red Eléctrica de España
- RWE Transportnetz Strom
- Hellenic Transmission
- Gestionnaire Réseau de Transport d’Electricité
- Terna Transmissione Elettricita Rete Nazionale
- ENBW Transportnetze
- REDE Eléctrica Nacional
- North Sea Interconnector
- Eliaset
- Elektroenergien Sistemen Operator
- OVIT Rt
- Vattenfall Europe Transmission
- Power generation projects, including:
- Offshore Sandbank 24
- Hinkley Point C
- Bradwell II
- Klempicz NPP
- Konin NPPOldbury II
- Wylfa Ii
- Drakelow
- Offshore Blekinge
- Blyth C
- Nyirtass
- Offshore Borkum Riffgrund West
Benefits:
- Plan and strategize around a complete view of the European generation and transmission system.
- Monitor your competitors’ market penetration and explore new markets
- See new transmission line expansions and planned generation
- Explore grid connectivity and routing possibilities
- Use as an initial research step when investigating land use and right-of-way possibilities
- Use in boardrooms and conference rooms for general reference and to visualize talking points
- Mark up the laminated version to keep notes on areas of interest
- View existing infrastructure with an unparalleled degree of accuracy
- Easily and quickly access vital data
Purchase and Delivery Options
Product options
This map is available in the following sizes:
Map dimension: 168 x 107 cm (42 x 66 inches)
Scale: 1: 2,619,080
Select the version that best meets your needs
Glossy format
Printed on heavyweight, photo-quality glossy paper to enhance the richness of the colors, this version is suitable for framing or display.
Laminated
Printed on a durable paper and then laminated, this version can be marked up again and again for analysis and brainstorming purposes.
CD-ROM
The CD-ROM version of the Electric Power System of Europe map allows you to view maps on any PC whether at your cubicle, in an office or on the road. The CD includes all the valuable information you'll find on the wall map, but in a handy, portable format that's perfect for anyone who has a shortage of wall space. It includes 23 legal sized (8.5 x14 inches) map pages that can be printed to take with you or share at a meeting. Using Adobe Acrobat, you can also extract snapshots of specific areas to help illustrate emails and presentations. Maps are also hyperlinked for easy navigation between adjacent map pages.
